CW6193C lathe

The CW6193C lathe is a high-precision and high-efficiency horizontal lathe widely used in the mechanical processing industry. This machine tool is mainly used for machining large shaft and disc parts, and can complete cutting of inner and outer cylindrical surfaces, end faces, conical surfaces, circular arc surfaces, and threads.

Main features
High precision machining:

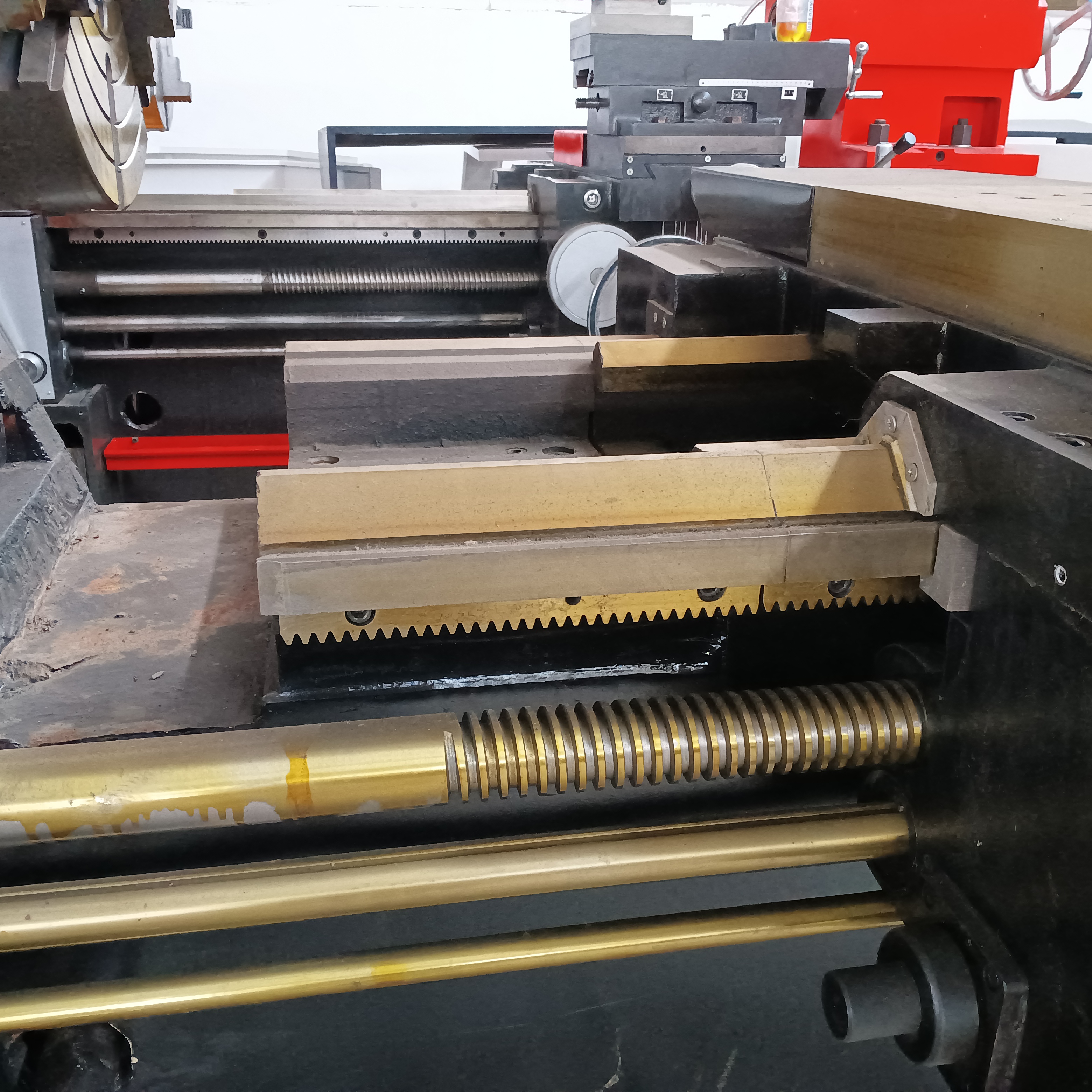

The bed guide rail has undergone ultrasonic quenching treatment, with strong wear resistance and high precision.

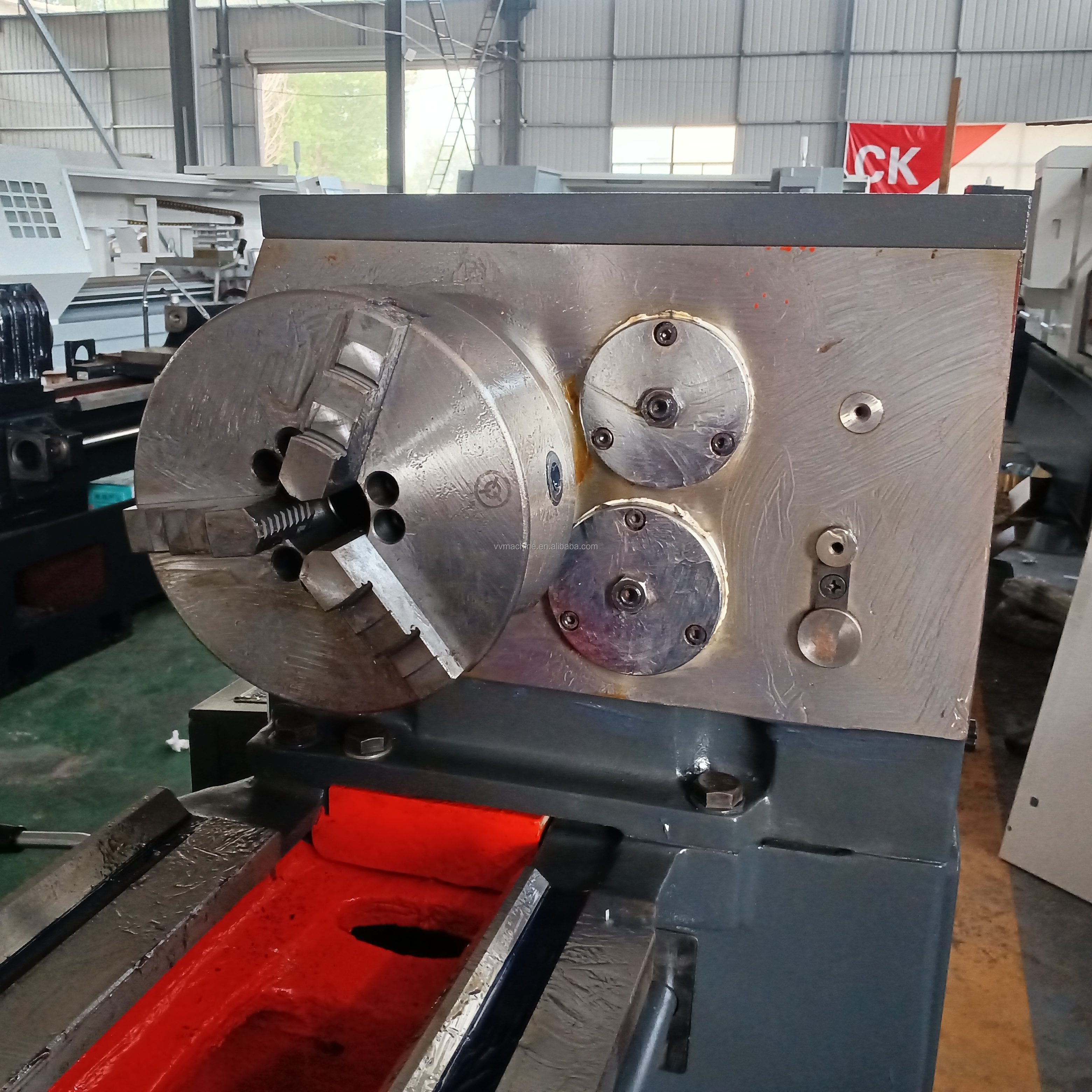

The spindle system has an advanced structure, stable speed, and high cutting performance.
High rigidity structure:
Using high-strength cast iron and adding special materials such as copper and chromium, the width of the bed guide rail is 550mm, and the quenching depth of the bed guide rail reaches 4mm, effectively improving the wear resistance and stability of the machine tool.
High degree of automation:
The spindle adopts hydraulic four speed variable speed, with a wide torque range and a wide range of applicable machining range.
The lubrication of the headboard box adopts hydraulic system automatic circulation forced lubrication, ensuring the cleanliness and heat dissipation characteristics of the headboard box.
Multi functional integration:
In addition to conventional turning operations, complex processes such as drilling, milling, and threading can also be performed.

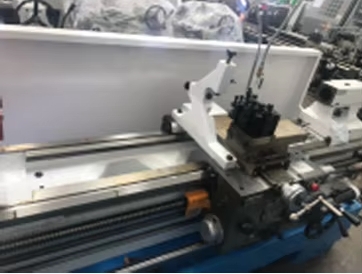

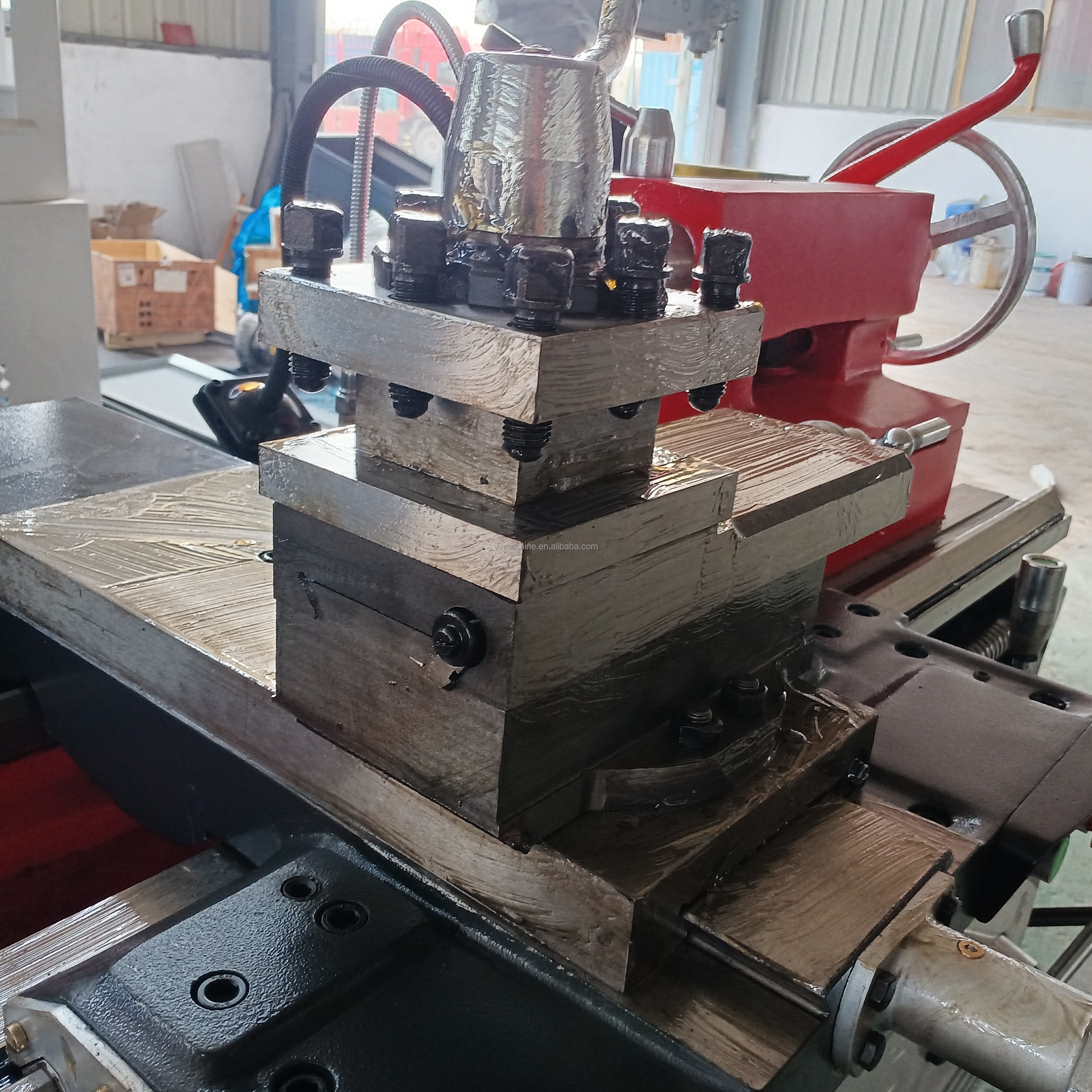

Equipped with a four station electric knife holder, the tool changing time is short and the efficiency is high.
Easy to operate:
The CNC system adopts the domestic famous brand GSK980 system, and the feed adopts high torque AC servo drive, which is easy to operate.
The machine tool adopts double sliding door protection, with a simple and elegant appearance.

Parameter specifications
The maximum workpiece rotation diameter on the bed is Φ 930mm
Maximum processing length 3000mm
The diameter of the spindle inner hole is Φ 104mm
Main spindle speed range B series: 18 types, 7.5-1000 r/min; C series: 18 types, 8.5-800 r/min
Longitudinal feed range 0.1-24.3 mm/r
Lateral feed range 0.05-12.15 mm/r
Metric thread range 1-240mm
British thread range 14-1 t.p. I
Main motor power 11 kW
Fast motor power 1.1 kW
Cooling electric pump power 0.09 kW
Machine tool dimensions 5500 × 1550 × 1790mm
Machine weight 5300kg
