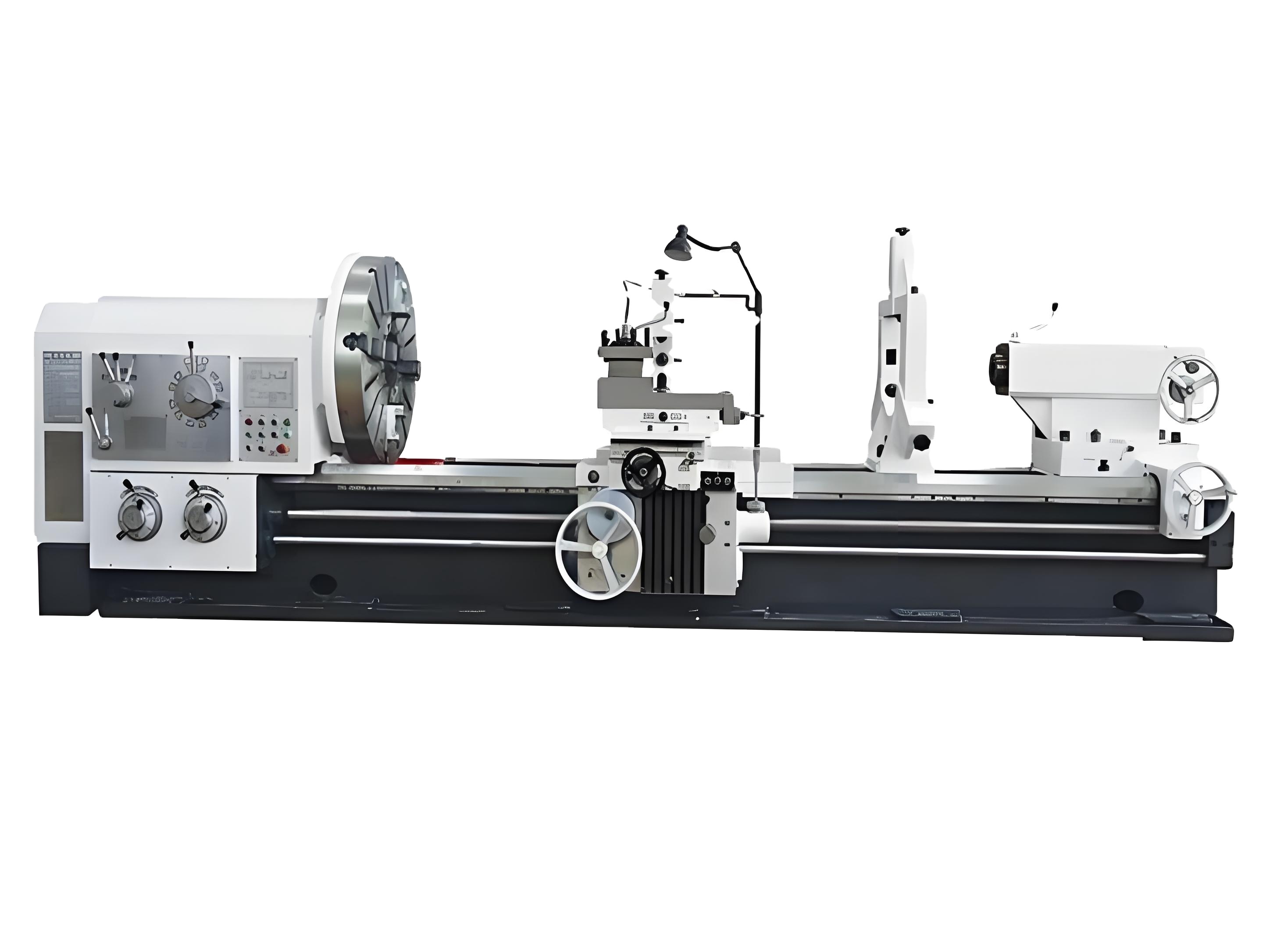

CW6100 lathe

The CW6100 lathe is a high-precision and high-efficiency horizontal lathe widely used in the mechanical processing industry. This machine tool is mainly used for processing various small and medium-sized steel parts, and can complete the processing of inner and outer cylindrical surfaces, conical surfaces, end surfaces, and various commonly used threads (metric, imperial, modular, and radial threads).

Main features
High precision machining:
The bed guide rail has undergone ultrasonic quenching treatment and precision grinding, maintaining good wear resistance and accuracy.
The spindle adopts a three support structure, with high rigidity and precision, and can perform strong cutting.
High rigidity structure:
The bed body adopts a wide side wall double rib plate, and the inner rib plate adopts a combination structure of box and inclined ribs, with high overall stiffness.
The slide box is equipped with a safety mechanism to prevent damage to the machine tool caused by overload.
High degree of automation:
The spindle has four gears and variable frequency stepless speed regulation, which can achieve non-stop variable speed within each gear, with a wide range of speed changes.

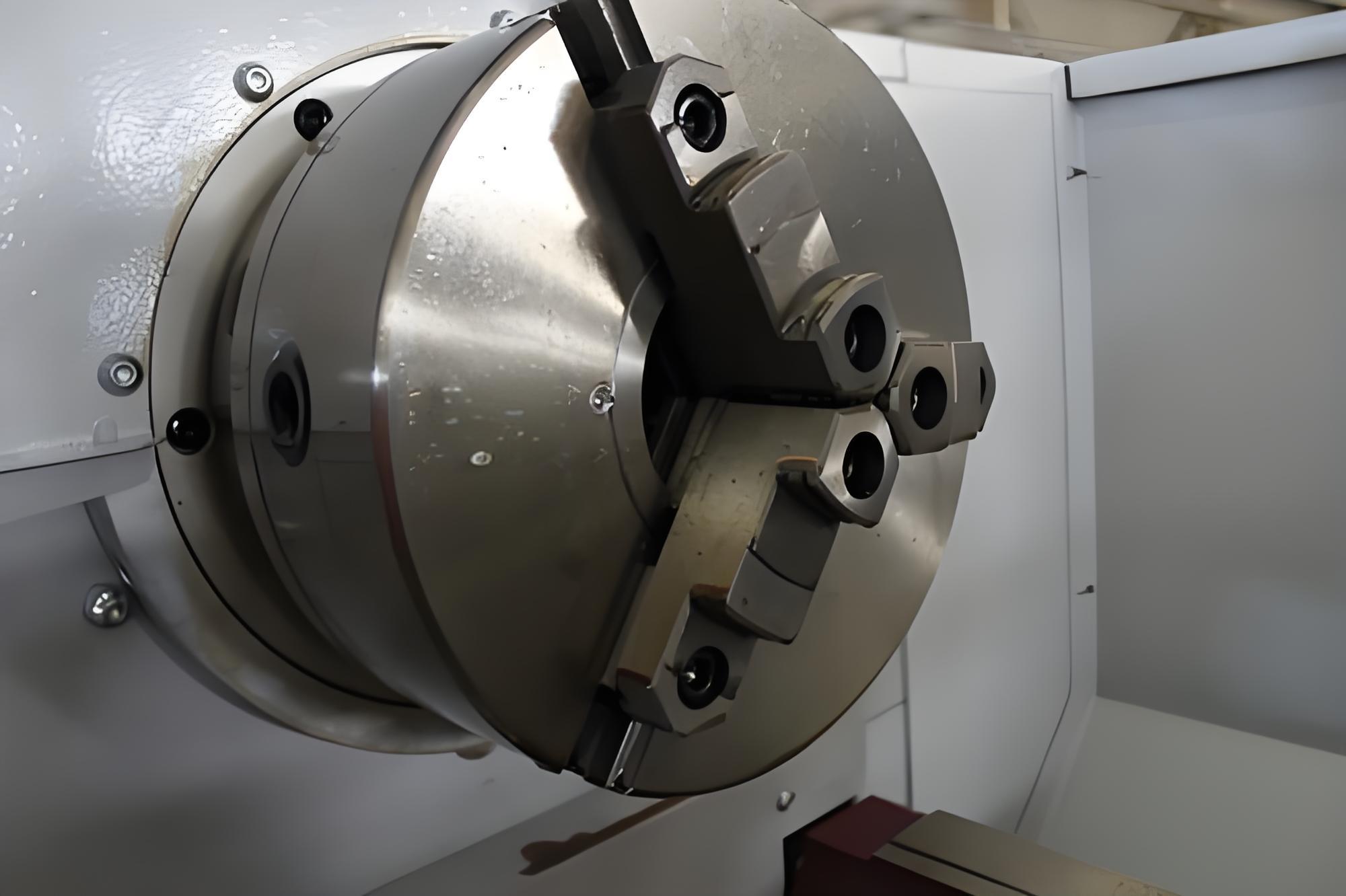

The spindle speed range is 17-1000 r/min, and the through-hole diameter is Φ 100mm.
Multifunctionality:
In addition to conventional turning operations, complex processes such as drilling, boring, pulling oil grooves, and keyways can also be performed.
The machine tool is equipped with both metric and imperial feed systems.
Easy to operate:

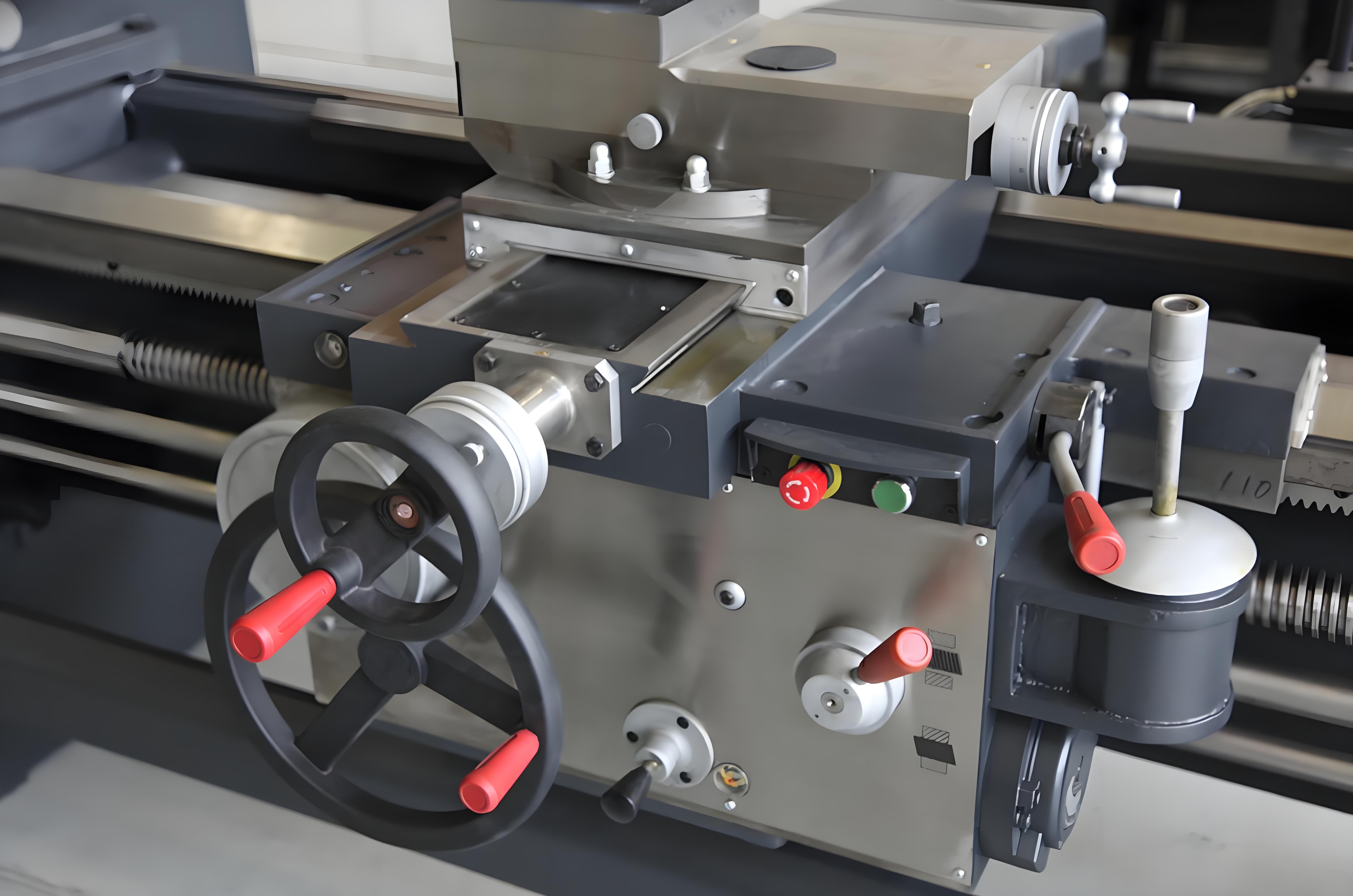

Centralized operation, the slide board is equipped with a fast moving mechanism, which is operated visually with a single handle.
The spindle's forward and reverse rotation conversion and braking are controlled by hydraulic pressure.

Parameter specifications
The maximum turning diameter on the bed is Φ 1000mm
Maximum workpiece length 1500/2000/3000/4000/5000mm
Main spindle aperture Φ 104mm (B series); Φ 130mm (C series)
18 spindle speed ranges, 5.4-720 r/min
64 types of longitudinal feed range, 0.06-24.3 mm/r
Lateral feed range 0.05-6.6 mm/r
50 types of metric thread range, 1-240mm
26 types of British thread range, 14-1 t.p. I
53 types of modular thread range, 0.5-120mm
24 types of radial thread range, 28-1 DP
Main motor power of 11 kW or 15 kW
Fast motor power 1.1 kW
Cooling pump motor power 90W
Machine tool dimensions 5150 × 1550 × 1700mm
The weight of the machine tool is approximately 10.7 tons
